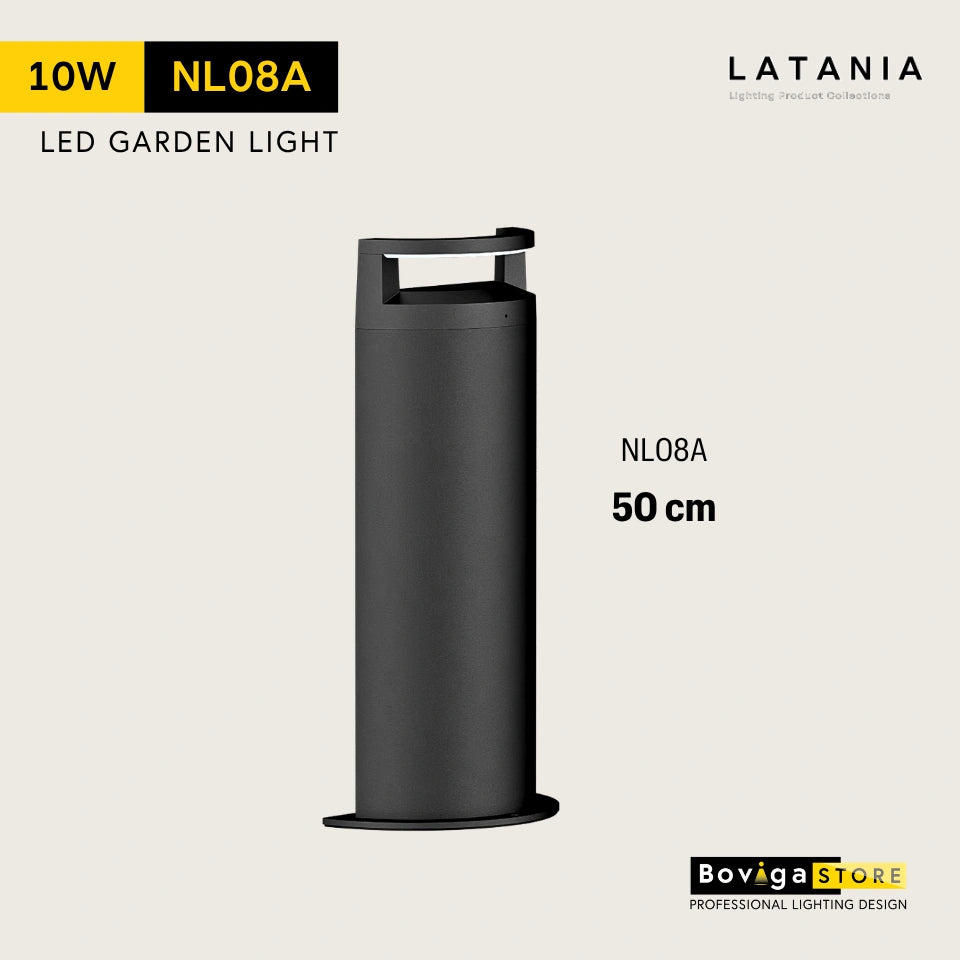

10W | NL08A ความสูง 50cm | โคมไฟสำหรับทางเดิน BOX BRIGHT

NL08A | LED Bollard | โคมไฟทางเดิน

Code No.			BB-NL08A-10W
Dimension(mm)			249×121×500
Watt(W)			10W
Rated Input Voltage(V)			AC200-240V
Input Voltage(V)			AC230V
LED Module Input			DC72V 135mA
Light Source			SMD
SDCM			<6
CCT(K)			1-CCT: 3000K/4000K/5000K/5700K
Luminous Flux (lm) ±5%			490-530
CRI			Ra>80
Beam Angle (°)			50°
LED Driver			Built-in
Electrical Class			Class I
Ingress Protection (IP Rating)			IP65
Impact Resistance (IK Rating)			IK08
Product Finishing(Base)			Black RAL9005
Materials of Optics			PC
Materials of Housing			Aluminum
Lifetime (hr)			50,000h
Glow wire test (℃)			850℃
Operating Temp. (℃)			-20℃~45℃
Installation			Ground mount
